Nesting Carts

This high-quality, versatile cart can be used both by store personnel and your customers. Customers can use the cart for large items, while placing small purchases in the optional mid utility basket. These carts nest into less than 33% of their normal length, thus freeing up valuable floor space.

Features
  • Heavy Duty. All-welded steel construction.
  • Reinforced. Gusseted and reinforced in high-stress areas.
  • Space Optimization. Designed to nest into less than 33% of their normal length.
  • Versatile Usage. Ideal for both store personnel and customers, versatility in handling large items with an optional utility basket for smaller purchases.
  • Efficient Storage. With a nestable design, these carts are easy to store when not in use.
  • Smooth Mobility. Two swivel casters in the back, easy maneuverability and smooth navigation through aisles.
  • OPTIONS: Mid Utility Basket, Zinc plated or powder coat finish.

Specs
Order #
Model
W
L
H
Weight

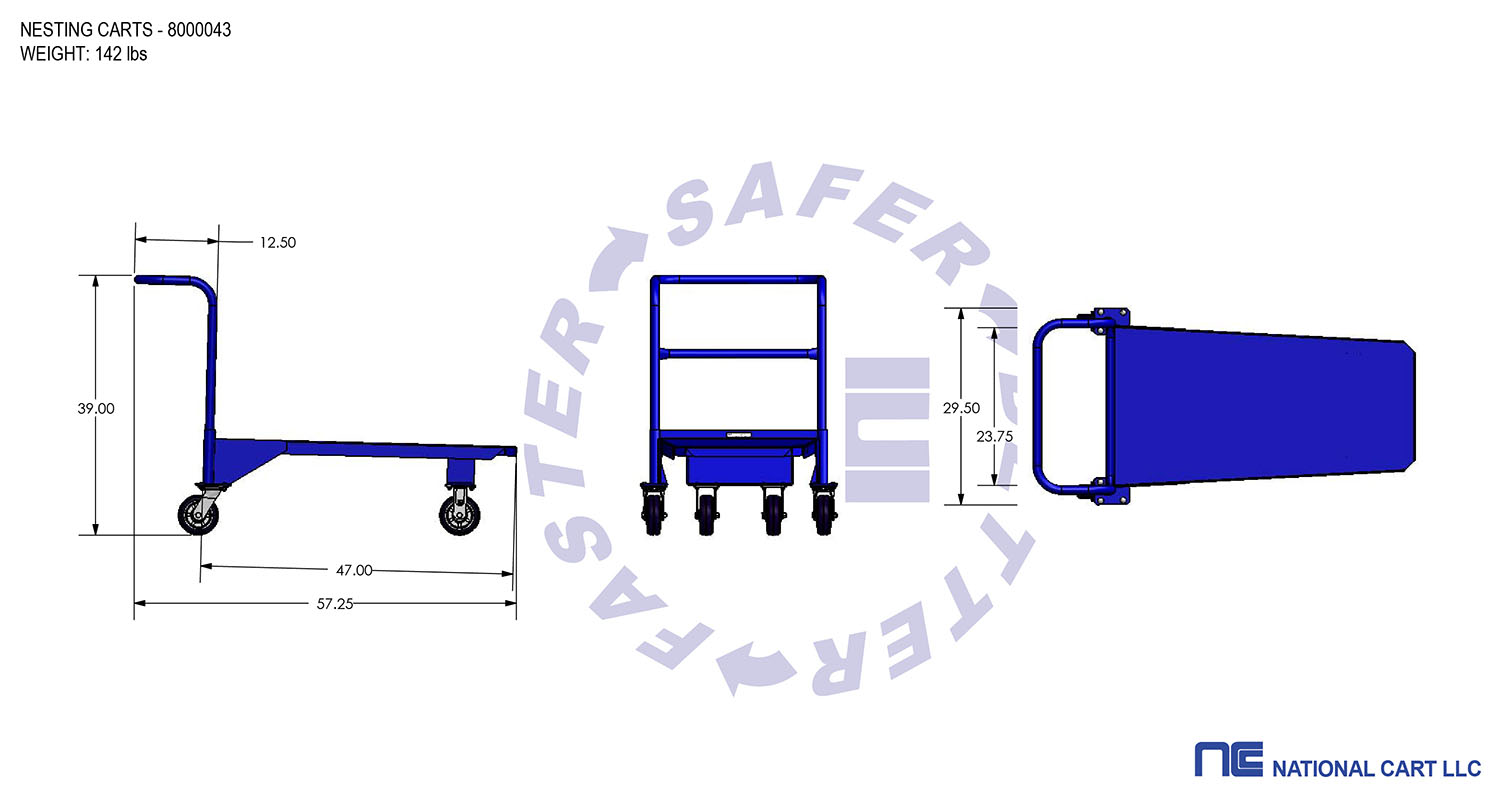

8000043
2448-NCPC-PU - Blue
30”
58”
40”
142 lbs.

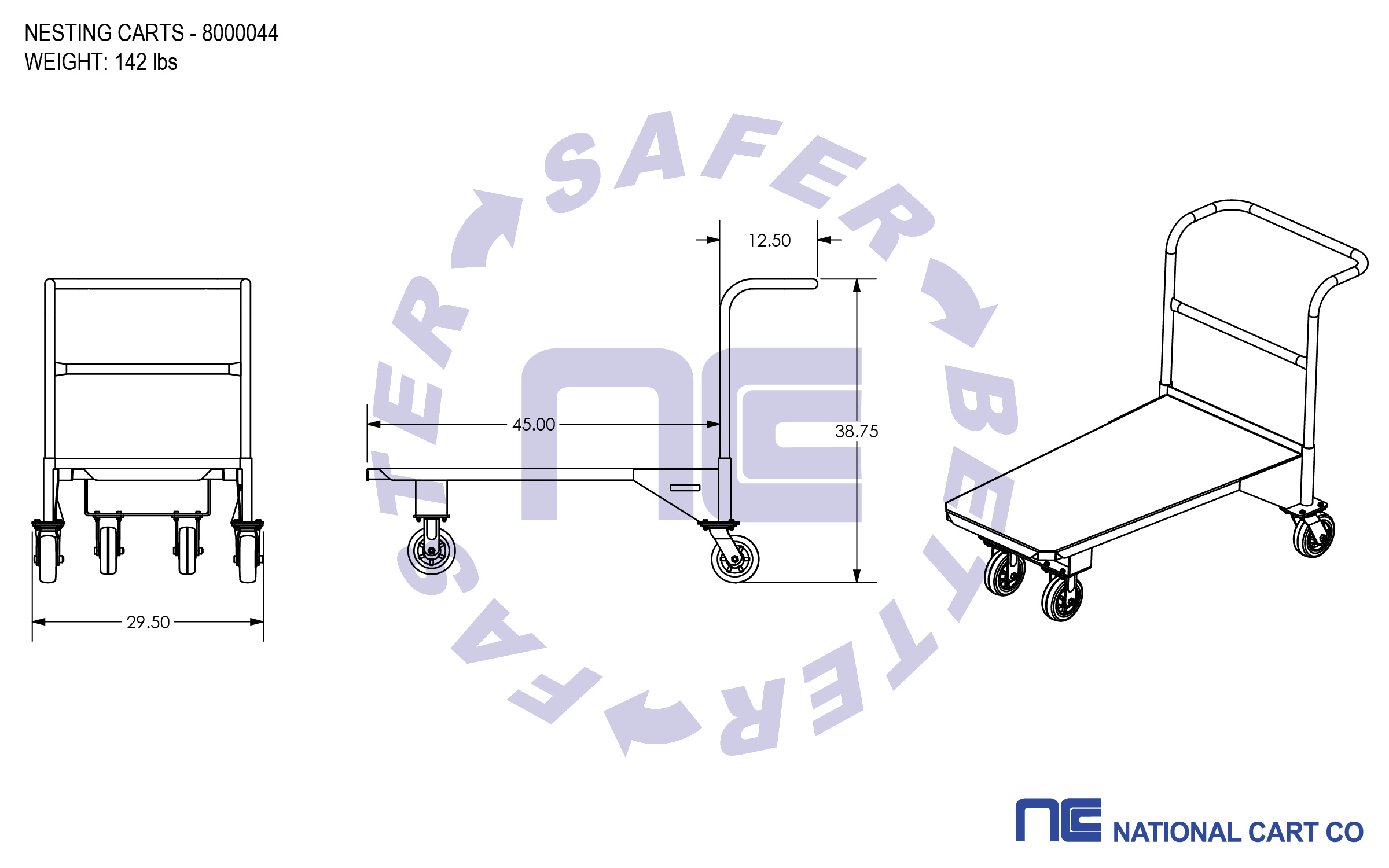

8000044
2448-NCZP-PU - Galv
30”
58”
40”
142 lbs.
8000045
3060-NCPC-PU - Green
36″
70″
40”
153 lbs.
8000047
2448-NCZP-PU-MB - Galv w/Basket
30″
58”
40”
142 lbs.
8000048
3060-NCZP-PU-MB - Galv w/Basket
36″
70″
40”
153 lbs.

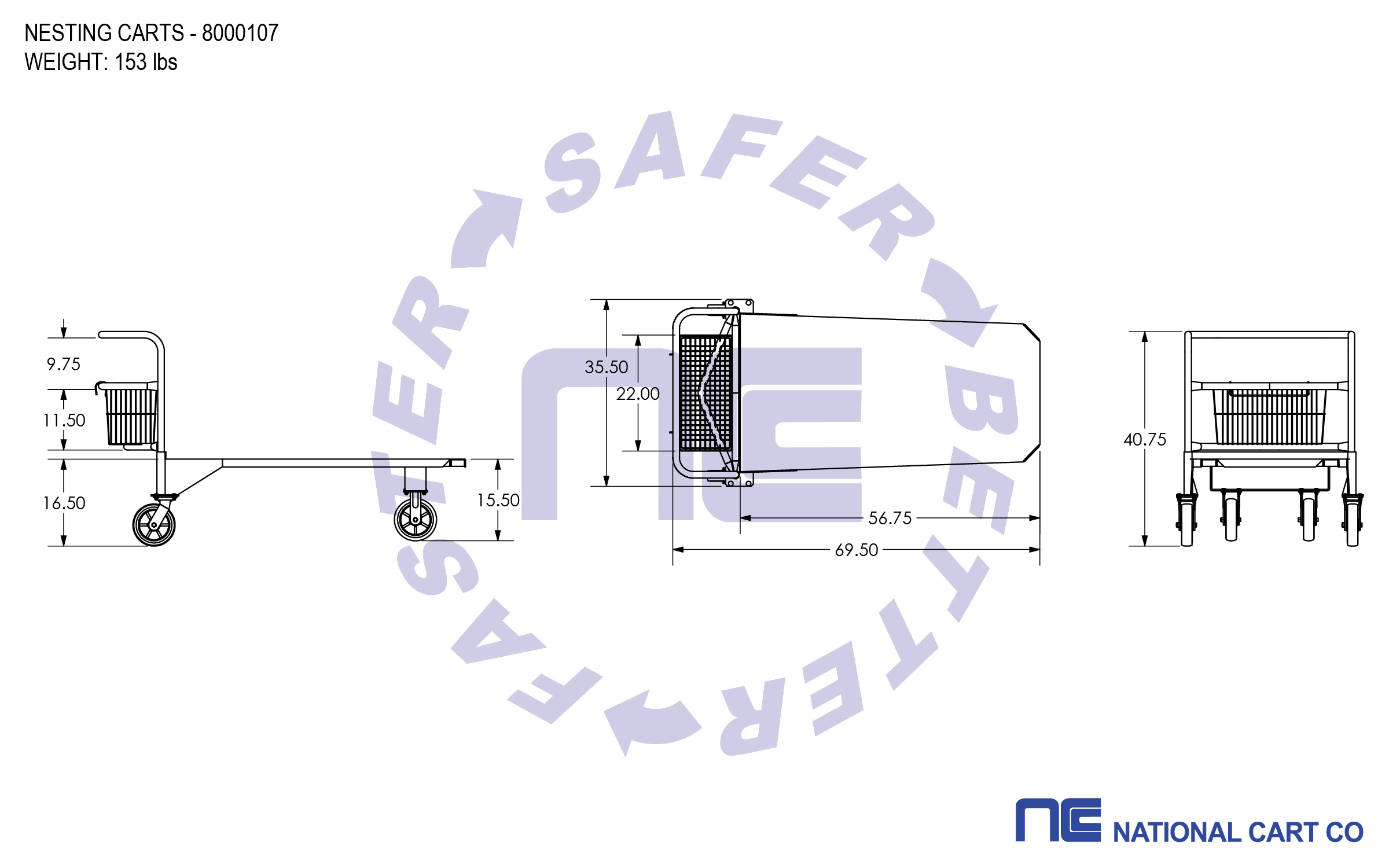

8000107
3060-NCPC-PU-MB - Green w/Basket
36″
70″
40”
153 lbs.
8000344
2448-NCPC-PU-MB - Gray w/Basket
30″
58″
40”
142 lbs.

FREIGHT CLASS: 100
NMFC CODE: 188560-S6

REPLACEMENT PARTS:

  • (2) rear swivel 8” x 2” polyurethane, replacement order #B000541.
  • (2) front rigid 8” x 2” polyurethane, replacement order #B000542.
  • Fasteners order #B000503 (bolt) and #B000183 (nut).
  • (2) rear swivel 6” x 2” polyurethane, replacement order #B000507.
  • (2) front rigid 6” x 2” polyurethane, replacement order #B000508.
  • Fasteners order #B000060 (bolt) and #B001225 (nut).
FAQ
  • What makes these carts “nesting”?
    They’re designed so multiple carts can slide into one another, reducing their length to less than 33% when stored.
  • Why would I use nesting carts?
    They save valuable floor space when not in use, making them ideal for back rooms, corrals, or storage areas.
  • What are the key materials and build quality?
    These carts are made from all-welded steel and reinforced at high-stress areas for strength and durability.
  • Can the nesting carts carry a mid‑sized utility basket?
    Yes. there’s an optional Mid Utility Basket for holding smaller items while larger goods go in the main section.
  • What finishes are available?
    You can choose between a zinc-plated finish or a powder-coated finish to match your aesthetic or functional needs.
  • How do these carts move?
    They’re equipped with two swivel casters in the back for smooth and easy maneuverability.
  • Are the carts customizable?
    Yes. National Cart offers custom sizes, colors, wheels, and more through their design team.

Heavy duty

Easy storage

Nesting

Available Variations

Our Nesting Carts are currently available in 7 variations that are ready for production. Request a Quote for pricing and details on specific variations.

Nesting Carts distribution cart industrial cart material handling
Nesting Carts distribution cart industrial cart material handling

Customizable

This product can be customized to meet your specifications - size, color, wheels, and more. Our designers will work with you to meet your individual requirements. Request a customized quote to learn more.


Customize This Cart

Work with our design team to spec the perfect cart to help you increase productivity, improve safety, and increase your bottom line.

  • Mid Utility Basket (MB)
  • Zinc-plated or powder-coated finish for your convenience
